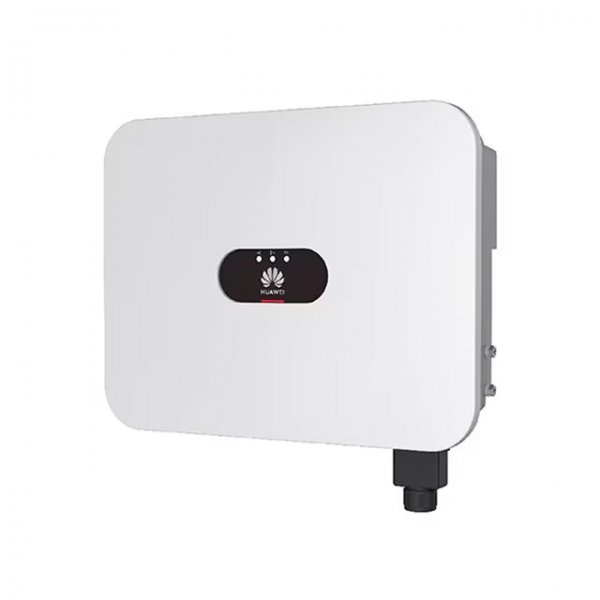

Huawei SUN2000-5K-LB0 Hybrid Inverter | 5000W | IP66 | 50-560Vdc | Single-Phase | 2 MPPT

The SUN2000-LBO series are single-phase hybrid inverters that can operate as grid-connected inverters while simultaneously managing energy storage in batteries, optimizing self-consumption.

The system provides backup power supply in the event of a grid failure when used together with the SmartGuard device. They feature two independent MPPTs, allowing greater flexibility in photovoltaic system design. Thanks to their IP66 protection rating, they can be installed outdoors without additional protection, making them ideal for residential and small commercial applications.

They are currently compatible with Huawei LUNA2000 battery systems, from 5 kWh configurations up to scalable higher-capacity systems. Communication between the inverter and the battery is carried out directly, with no need for additional communication gateways.

• Single-phase inverter 230 Vac.
• High maximum efficiency of up to 97.8%.
• Wide input voltage range and MPPT operating range.
• Two MPPTs for greater PV array design flexibility.
• Ready for energy storage and backup systems.
• Active Arc Fault Circuit Interrupter (AFCI) protection.
• Integrated WLAN communication and compatibility with Smart Dongle devices.
• Monitoring via the FusionSolar platform and mobile application.
• Compact, lightweight design for easy installation.
