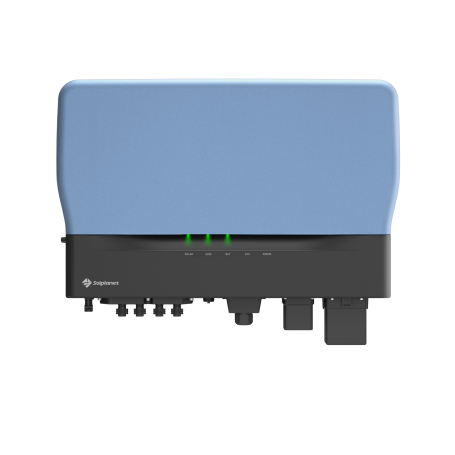

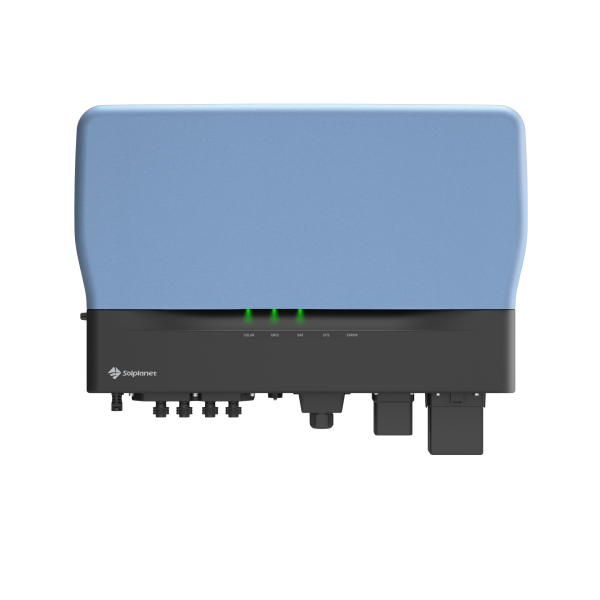

Solplanet ASW025K-TH Hybrid Inverter | 25000W | 180-950Vdc | Three-phase | 4 MPPT

The ASW TH Series from Solplanet consists of three-phase hybrid inverters from 15 to 30 kW designed for commercial and industrial applications requiring high performance, large PV capacity, and advanced energy storage management. They allow up to 200% PV oversizing, feature 4 MPPTs with up to 40 A per tracker, and support a wide battery voltage range (120–800 V) with up to 100 A charge/discharge current. The EPS backup output provides <10 ms switching time, while string-level monitoring, dynamic export power control, and smart management via the Solplanet App ensure optimized operation. The IP66-rated design, Type II SPD protection, and intelligent cooling system guarantee maximum reliability for indoor and outdoor installations.

• Up to 200% PV oversizing

• 4 independent MPPTs (up to 40 A per MPPT)
• Wide battery voltage range: 120–800 V
• Up to 100 A charge and discharge current
• EPS backup output with <10 ms switching time (UPS level)
• String-level current monitoring
• Dynamic export power control
• Type II SPD protection (DC/AC)
• IP66 design with intelligent cooling
• Setup and monitoring via Solplanet App
