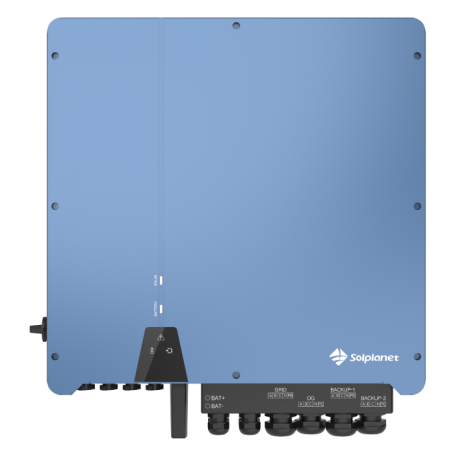

Solplanet ASW12KH-T2-DG Hybrid Inverter | 12000W | 180-950Vdc | Three-phase | 2 MPPT

ASW H-T2-DG Series from Solplanet consists of high-performance three-phase hybrid inverters designed for residential and commercial systems requiring maximum flexibility, backup capability, and intelligent energy management. They allow up to 150% PV oversizing, feature 2 independent MPPTs compatible with high-power modules, and deliver up to 98.4% maximum efficiency. Advanced LiFePO₄ battery management supports up to 50 A charge/discharge current, while the EPS backup output provides ultra-fast switching (<10 ms) and diesel generator compatibility. The robust IP66 design and app-based monitoring ensure a safe, efficient, and easy-to-install solution.

• Up to 150% PV oversizing
• 2 independent MPPTs (up to 20 A per tracker)
• Up to 98.4% maximum efficiency (99.9% MPPT efficiency)
• Smart LiFePO₄ battery management (up to 50 A)
• EPS backup output with <10 ms switching time
• Diesel generator compatible
• Advanced protection: Type II SPD, anti-islanding, optional AFCI
• IP66 design for indoor and outdoor use
• Monitoring and configuration via Solplanet App
