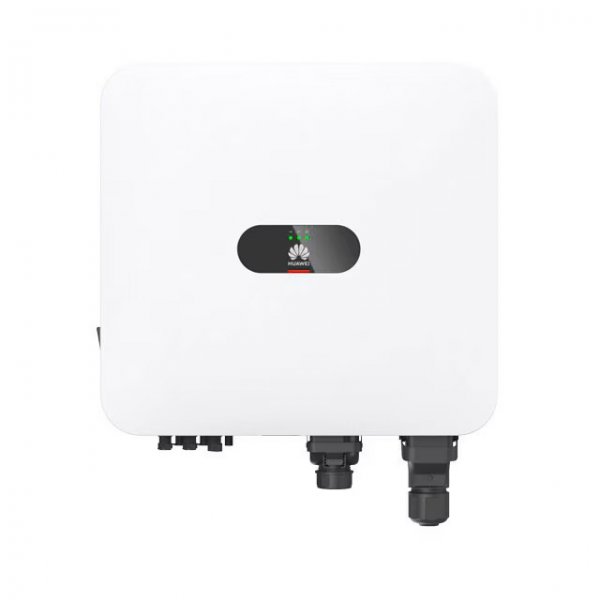

Huawei SUN2000-5K-MAP0 Hybrid Inverter | 5000W | IP66 | 160-1000Vdc | Three-Phase | 2 MPPT

The Huawei SUN2000-5/6/8/10/12K-MAP0 series are high-performance three-phase hybrid inverters designed for residential and commercial installations aiming to maximize self-consumption and energy independence. They operate as grid-connected inverters and allow direct battery integration, intelligently managing photovoltaic generation, energy storage, and building consumption.

They incorporate active safety technology with Arc Fault Circuit Interruption (AFCI) and connector temperature detection, significantly increasing system safety. Thanks to their 2 independent MPPTs, they enable flexible PV array configuration with up to 16 A per MPPT. They deliver a maximum efficiency of up to 98.6% (up to 98.2% European efficiency depending on the model) and feature an IP66 protection rating, allowing safe indoor and outdoor installation.

They are compatible with Huawei LUNA2000-5/10/15-S0 and LUNA2000-7/14/21-S1 batteries, offering up to 12 kW maximum charging power and up to 12 kW discharging power (depending on the model). In addition, they support backup power supply through the SmartGuard-63A-T0 (3-phase), ensuring power continuity during grid outages, with overload capability of up to 200% for 10 seconds and support for three-phase asymmetric loads.

• Three-phase hybrid inverter 220/380 Vac, 230/400 Vac, 240/415 Vac (3W/N + PE).
• Rated output powers: 5 kW, 6 kW, 8 kW, 10 kW, and 12 kW.
• Maximum efficiency up to 98.6%.
• MPPT voltage range: 160 – 1,000 V (startup at 160 V).
• 2 independent MPPTs with 16 A per MPPT.
• Compatible with LUNA2000 S0 and S1 batteries.
• Maximum battery charge power up to 12 kW and discharge power up to 12 kW (depending on model).
• Supports three-phase asymmetric output with up to 200% overload capability.
• AFCI protection, anti-islanding protection, and comprehensive AC/DC protections.
• Insulation monitoring and connector temperature detection.
• Integrated WLAN and monitoring via FusionSolar App.
• Compatible with Smart Dongle WLAN-FE, 4G, and RS485 communication.
• Compact design (490 × 460 × 130 mm), weight 21 kg.
• IP66 protection rating, natural convection cooling, and operation up to 4,000 m altitude.
