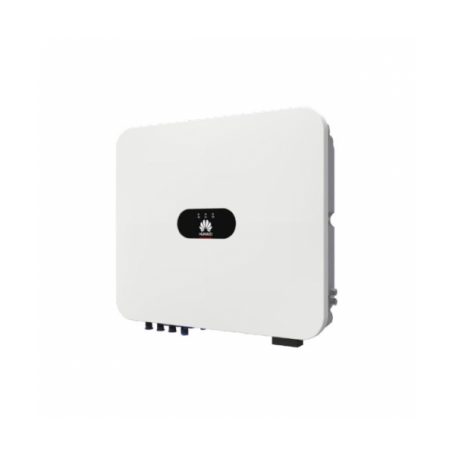

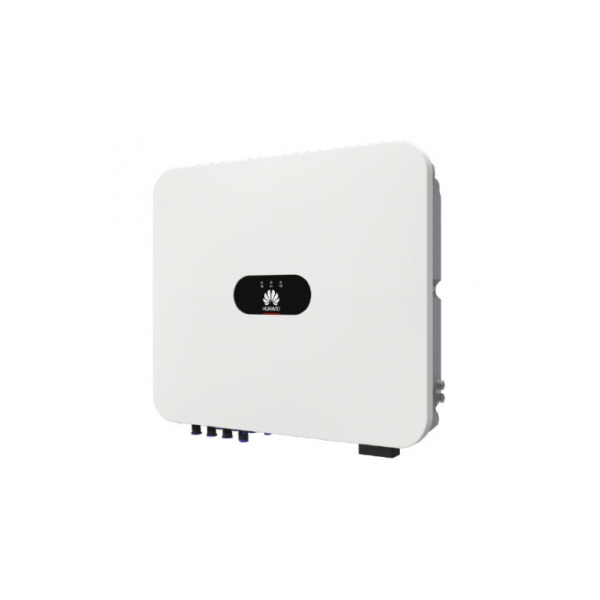

Huawei SUN2000-10K-LC0 Hybrid Inverter | 10000W | IP66 | 50-560Vdc | Single-Phase | 3 MPPT

The Huawei SUN2000-8/10K-LC0 series are single-phase hybrid inverters designed for residential and light commercial installations seeking to maximize self-consumption and energy independence. They operate as grid-tied inverters while enabling direct battery integration, intelligently managing photovoltaic generation, storage, and household consumption.

They incorporate active safety technology with AI-powered Arc Fault Circuit Interruption (AFCI), significantly enhancing system safety. Thanks to their 3 independent MPPTs, they provide high flexibility in PV array design and optimize performance, achieving up to 30% more energy yield when used with compatible optimizers. With a maximum efficiency of 98.1% and an IP66 protection rating, they are suitable for both indoor and outdoor installations.

They are compatible with Huawei LUNA2000 (5/10/15-S0) batteries, offering charge and discharge power of up to 8 kW (8K model) and 10 kW (10K model). In addition, they support backup power supply through the SmartGuard-63A-S0, ensuring power continuity in the event of grid failure.

• Single-phase hybrid inverter 220/230/240 Vac.
• Rated output power: 8 kW and 10 kW models.
• Maximum efficiency up to 98.1% (97.5% European efficiency).
• Wide MPPT voltage range: 40 – 560 V.
• 3 independent MPPTs with up to 16 A per MPPT.
• Compatible with LUNA2000 batteries (5–15 kWh modules).
• Battery charge/discharge power up to 10 kW (model dependent).
• AI-powered arc fault protection (AFCI).
• Comprehensive AC/DC protections and insulation monitoring.
• Built-in WLAN and monitoring via FusionSolar App.
• Compatible with Smart Dongle WLAN-FE and 4G.
• Compact design (425 × 365 × 150 mm), weight 14.5 – 15 kg.
• IP66 protection rating and operation up to 4,000 m altitude.
